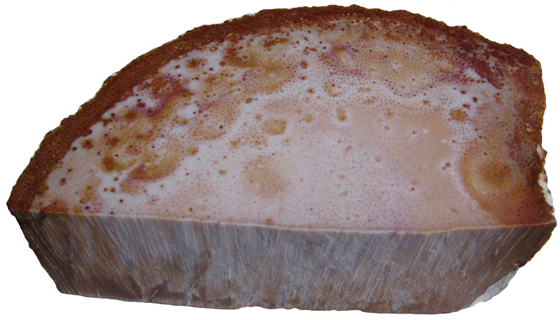

Palmoxylon
Cenozoic; Paleogene; Oligocene
Catahoula Formation
Louisiana, USA
18.5 cm x 10 cm x 7 cm thick
The
Shreveport Collection
Using
a 10x or 20x loupe one can see fabulous tissue preservation in many
Louisiana Palmoxylon fossils. One gains a new appreciation
for these fossils when picking out specimens based upon preservation
and color observed at only magnified levels. The first three images were taken with a Canon
PowerShot SD770 IS Digital ELPH 10.0 MEGA PIXELS, cropped and resized
in Adobe Photoshop CS6. The images were taken in sunlight
outside.
The next five images were taken with a Dino-Lite AD7013 MT 5.0 MP. Images were resized in Adobe Photoshop CS6. The first three images are at 150x.
In the first image we can see the perforation plates of the vessel elements. Perforation plates are the perforated ends of the cell walls of vessel elements. Perforation plates can be simple (open space within a rim Latin simpl "simple"), reticulate (net-like Latin reticula "network"), foraminate (numerous cirular pores Latin foram "an opening"), or scalariform from the Latin scalari "ladder" form "shape"(Borror, 1988). The vessels of this palm have scalariform (ladder-like) perforation plates.
The next two images are taken at 200x. In the last image we can once again see the ends of the vessel elements, which exhibit scalariform perforation plates.
Bibliography
Borror,
D.J. (1988). Dictionary of Word Roots and Combining Forms.
California: Mayfield Publishing Company.
